Raifu YT Series Integrated PM VSD Compressor
Smart 4-in-1 integrated compressed air system with Permanent Magnet VSD for up to 50% energy savings.
- 4-in-1 integrated air station system cutting installation floor space by up to 60%
- Permanent Magnet synchronous motor providing outstanding energy efficiency
- Built-in refrigerated dryer producing high-quality dry air to prevent pipe corrosion
Description

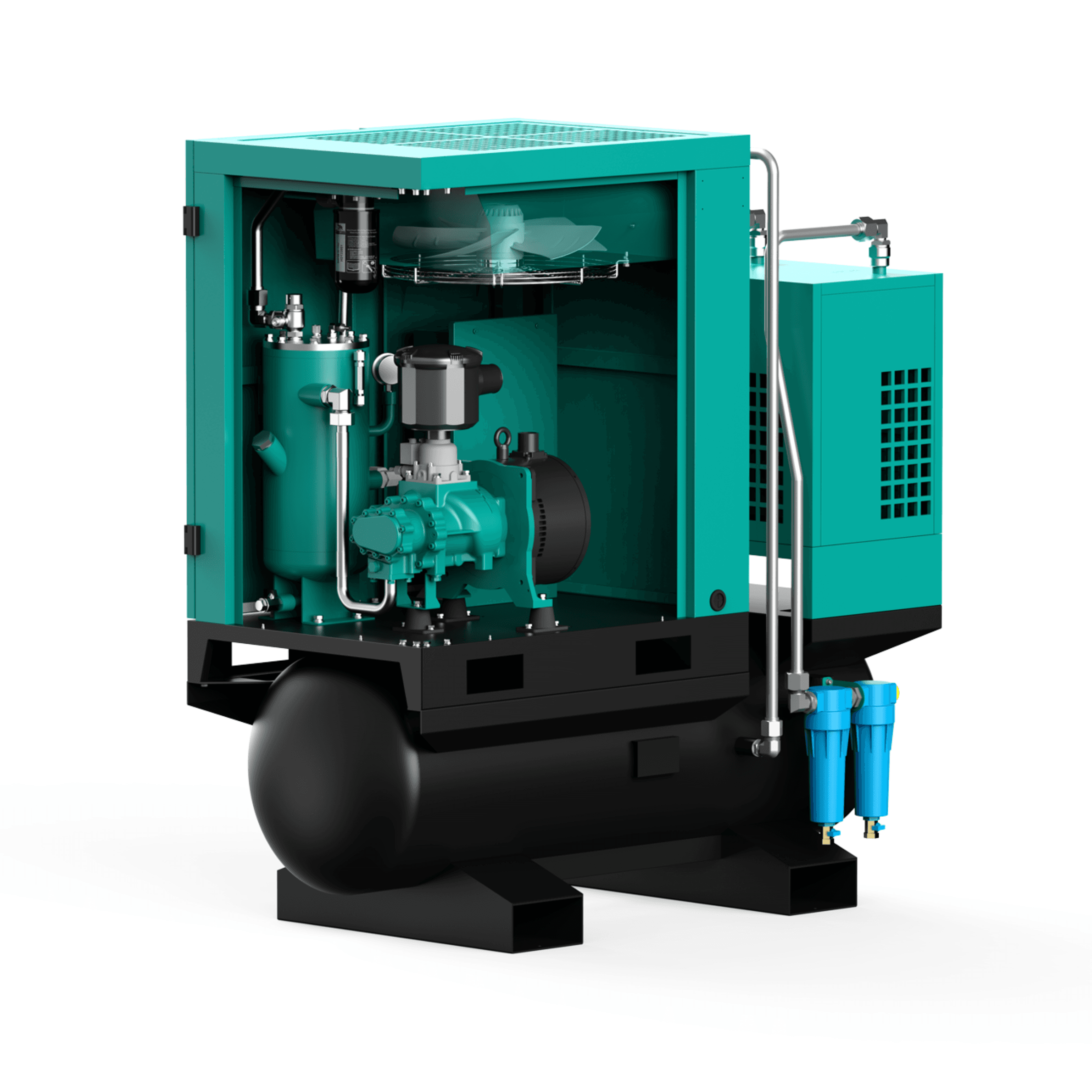

The Raifu YT Series represents the pinnacle of compressed air system innovation with its 4-in-1 integrated air station concept. This unit intelligently combines a Permanent Magnet (PM) screw air compressor, Variable Speed Drive (VSD) technology, a refrigerated air dryer, coalescing precision filters, and a 300-liter air receiver tank into a single compact cabinet structure. The PM VSD technology precisely modulates the motor output to match actual air consumption in the production line, eliminating power loss during the unloaded phase. The integrated air dryer guarantees dry, moisture-free, and ready-to-use air supply for sensitive pneumatic tools and precision manufacturing processes.
Technical Models & Specifications
The Raifu YT Series Integrated PM VSD Compressor is available in multiple models each with its own technical specifications. Select a model below to view its complete parameters.
| Parameter | Value |
|---|---|
| Power | 37.5 kW/HP |
| Air Pressure | 10 bar |
| Air End Model | DLG30VB / DLG30C |
| Motor Speed | Rated: 3000 rpm, Max: 3400 rpm |
| Shaft Power | 37.5 kW |
| Air Discharge | 4.99 m³/min |
| Air End Service Factor | 1.01 |
| Noise | ≤66 dB |
| Tank | 600 Liters |
| Weight | 795.9 kg |
| Dimensions | 1900 × 1000 × 2000 mm |
Technical Features
Key capabilities and technical highlights that define this product's performance and reliability across industrial, automotive, and workshop applications.
