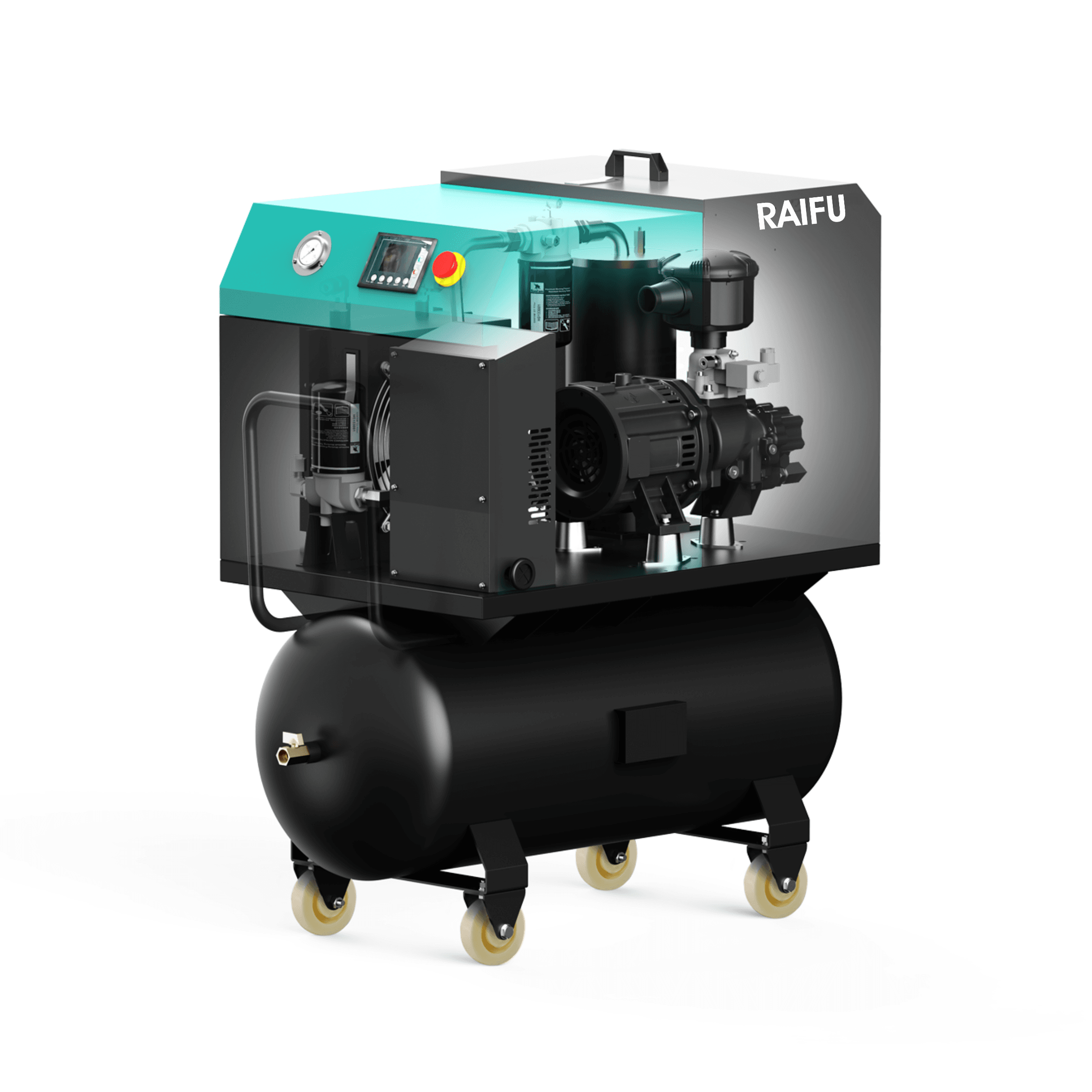

Raifu WE Series Single Stage Screw Air Compressor
Heavy-duty single stage screw air compressor for continuous operations in manufacturing plants.
- Large flow capacity up to 3.6 m3/min for large-scale factory demands
- Robust construction with a highly effective vibration-dampening chassis
- Modular service access for easy maintenance of air and oil filters
Description
The Raifu WE Series screw air compressor integrates a robust 22 kW motor to deliver a high-capacity air flow of up to 3.6 m3/min at a constant working pressure of 8 bar. This unit is built to meet high-volume compressed air demands in heavy manufacturing, automotive assembly, and automated packaging lines. Utilizing industrial-grade bearings and an optimized oil circulation system, the WE Series guarantees exceptional mechanical durability even under continuous heavy duty loads.
| Parameter | Value |
|---|---|
| Motor | 22 kW (30 HP) |
| Working Pressure | 8 bar |
| Flow Capacity | 3.6 m3/min |
| Cooling System | Air Cooled |
| Drive Method | Direct Driven |
| Operating Voltage | 380V / 3 Phase |
Technical Specifications
Complete technical parameters and performance metrics for this product to help you determine suitability for your operational requirements.
Technical Features
Key capabilities and technical highlights that define this product's performance and reliability across industrial, automotive, and workshop applications.
