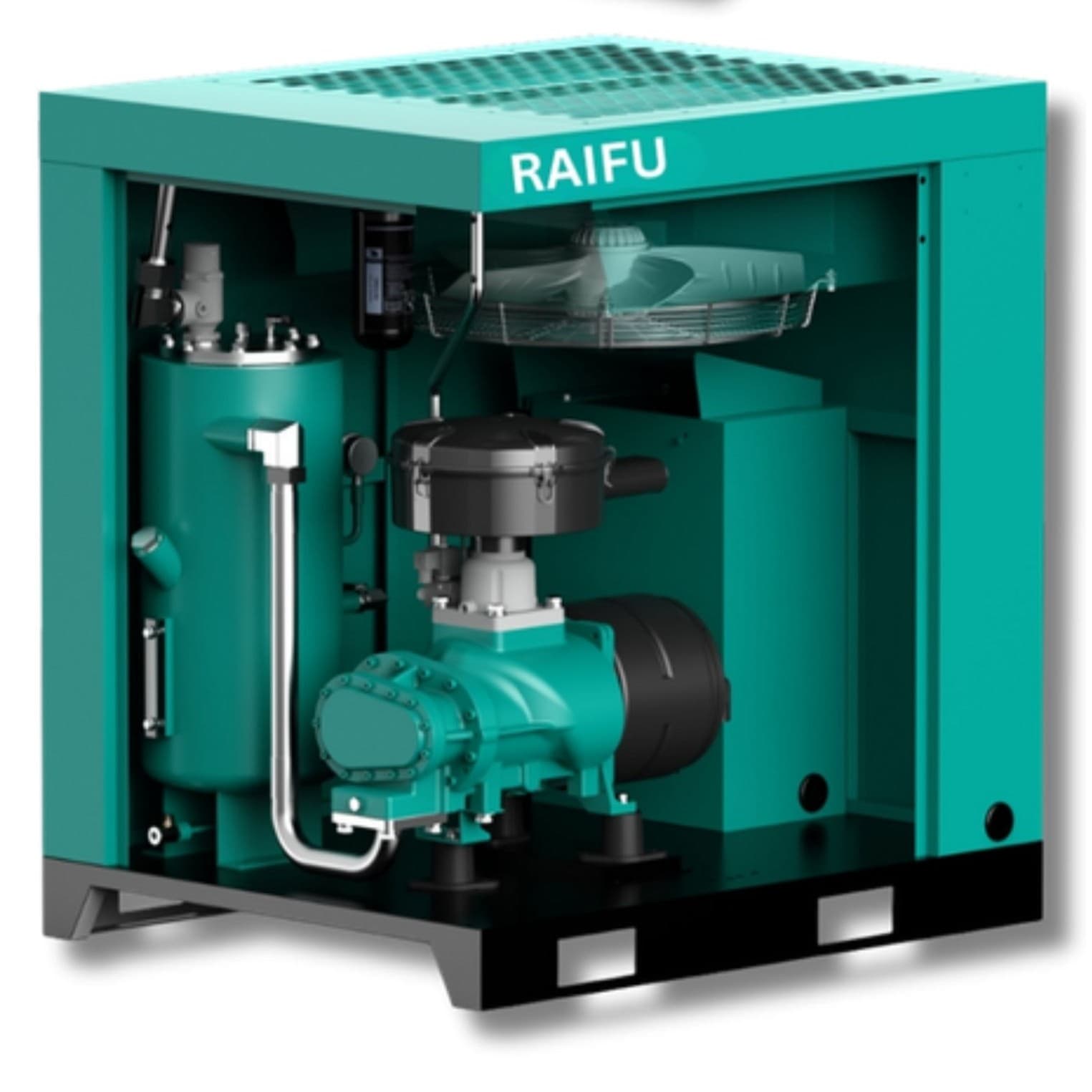

Raifu TF Series Single Stage Screw Air Compressor
Heavy-duty single stage screw air compressor for continuous operations in manufacturing plants.
- Large flow capacity up to 3.6 m3/min for large-scale factory demands
- Robust construction with a highly effective vibration-dampening chassis
- Modular service access for easy maintenance of air and oil filters
Description
The Raifu TF Series screw air compressor integrates a robust 22 kW motor to deliver a high-capacity air flow of up to 3.6 m3/min at a constant working pressure of 8 bar. This unit is built to meet high-volume compressed air demands in heavy manufacturing, automotive assembly, and automated packaging lines. Utilizing industrial-grade bearings and an optimized oil circulation system, the WE Series guarantees exceptional mechanical durability even under continuous heavy duty loads.
Technical Models & Specifications
The Raifu TF Series Single Stage Screw Air Compressor is available in multiple models each with its own technical specifications. Select a model below to view its complete parameters.
| Parameter | Value |
|---|---|
| Frequency Inverter | Seener Single Frequency Inverter |
| Air End Model | DLG7 |
| Motor Parameter | 7.5/3000 kW/rpm |
| Discharge Pressure | 7 bar |
| Rated Flow Rate | 1.16 m³/min |
| Overall Dimensions | 780 × 630 × 950 mm |
| Weight | 133 kg |
| Noise | ≤70 dB |
| Outlet Pipe Diameter | G1/2 |
Technical Features
Key capabilities and technical highlights that define this product's performance and reliability across industrial, automotive, and workshop applications.
