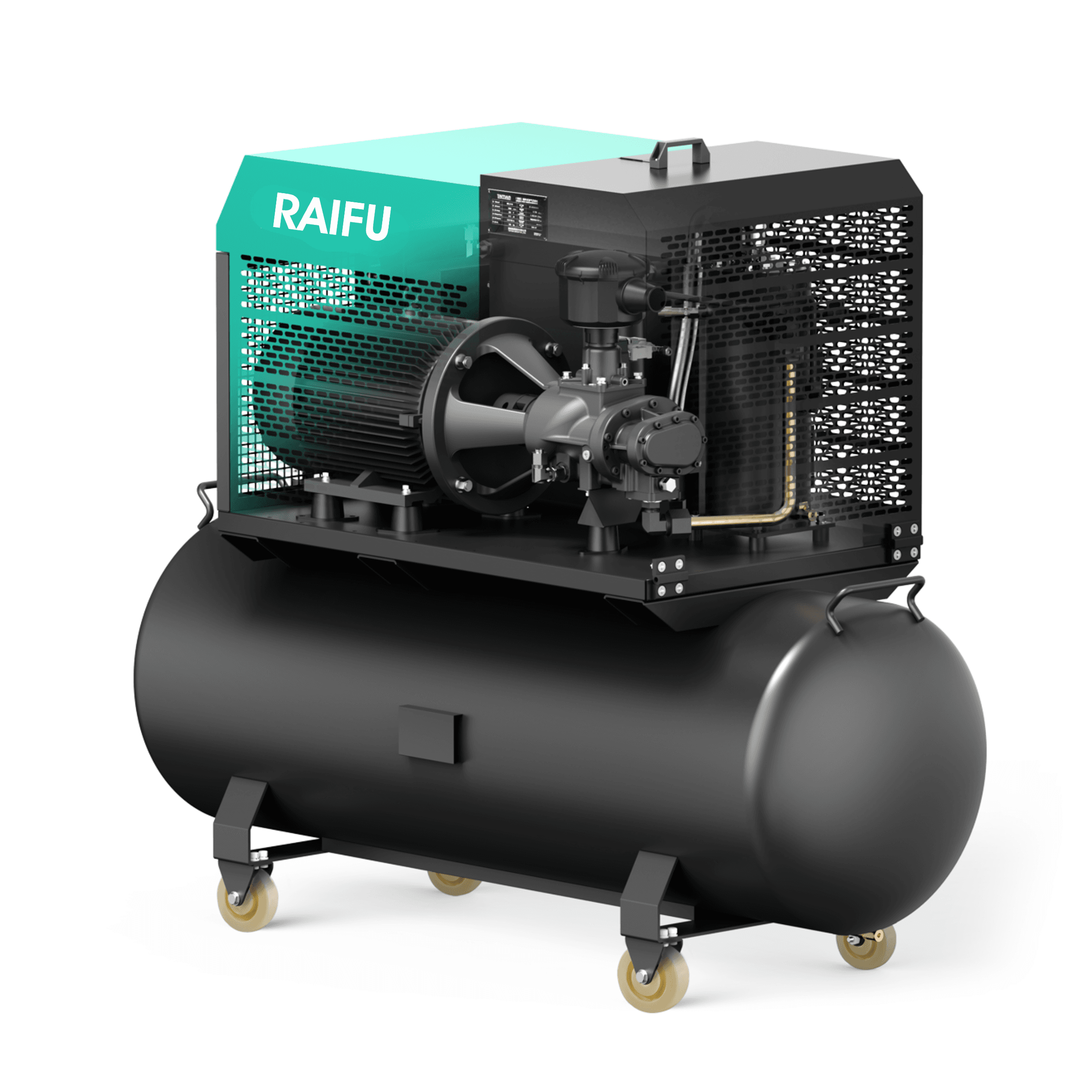

Raifu ME Series Single Stage Screw Air Compressor
ME Series single stage screw compressor with high efficiency for continuous industrial air needs.
- High-precision screw rotor technology for maximum volumetric efficiency
- Advanced soundproof enclosure to minimize noise pollution in the work area
- Maintenance-free direct-driven system (belt-free configuration)
Description
The Raifu ME Series single stage screw air compressor is specifically engineered to provide a stable and reliable supply of compressed air for medium-scale industries. Utilizing high-precision screw rotor technology, this compressor minimizes friction and optimizes air displacement volume. The direct-driven design ensures maximum power transfer from the motor to the airend with zero energy loss, supported by a reliable air-cooling system to maintain optimal operating temperatures during 24/7 continuous operation.
Technical Models & Specifications
The Raifu ME Series Single Stage Screw Air Compressor is available in multiple models each with its own technical specifications. Select a model below to view its complete parameters.
| Parameter | Value |
|---|---|
| Air End Model | DLG2.2 |
| Motor Parameter | 8 / 9 kW/rpm |
| Motor Power | 2.2 kW |
| Horsepower | 3 HP |
| Starting Method | Power Frequency Starting |
| Voltage | 220 V |
| Air Discharge | 0.223 / 0.215 m³/min |
| Motor Speed | 2800 rpm |
| Weight | 101 kg |
| External Dimension | 960 × 465 × 890 mm |
| Cooling Method | Air Cooled |
| Air Tank Volume | 60 L |
| Outlet Pipe Diameter | G1/2 |
Technical Features
Key capabilities and technical highlights that define this product's performance and reliability across industrial, automotive, and workshop applications.
